Why 1:1 Halogen-Size Design Matters When Choosing LED Headlight Bulbs

When choosing LED headlight bulbs, fitment is just as important as brightness. A bulb may match your vehicle’s socket type but still be too large for the space behind the headlight housing.

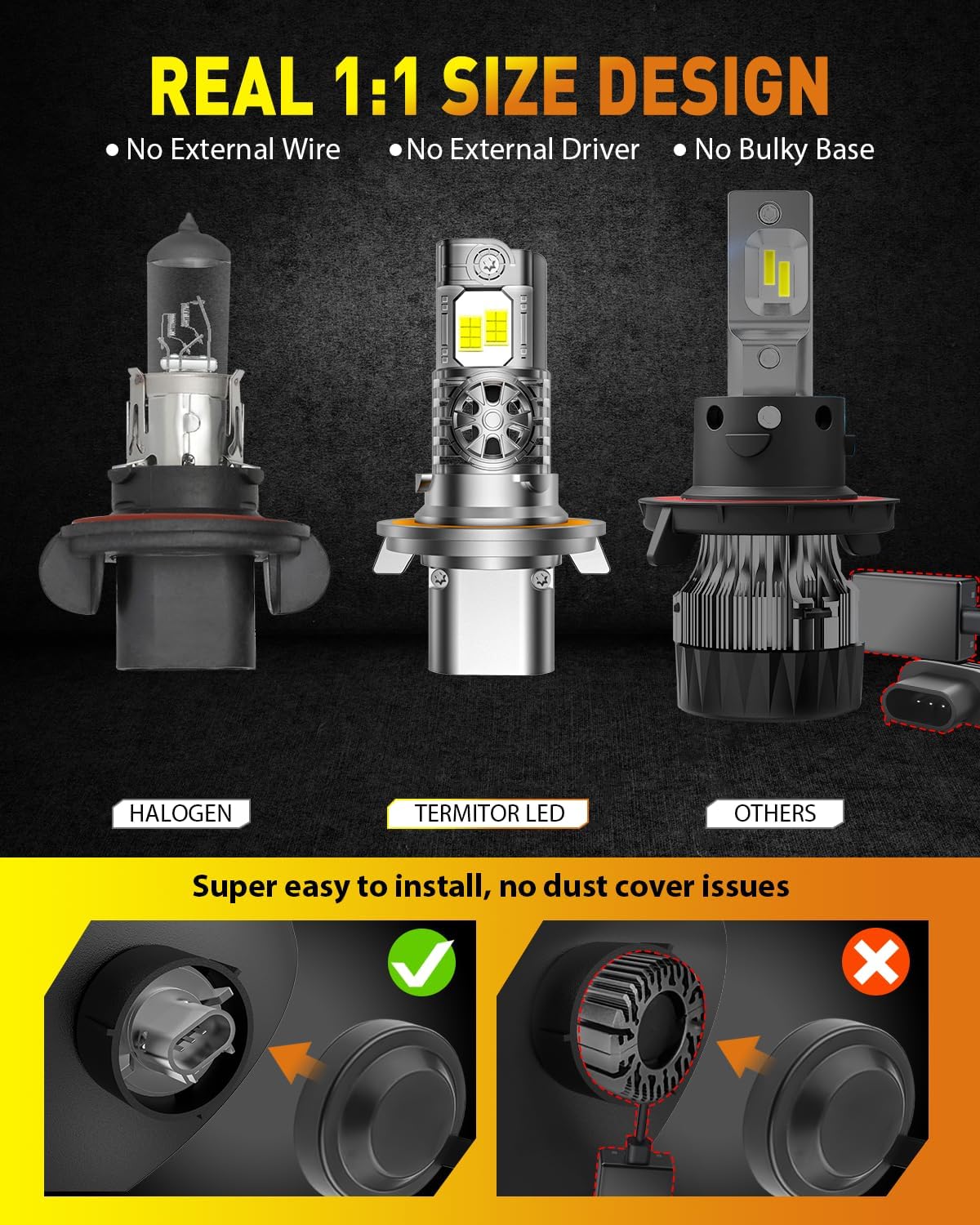

A 1:1 halogen-size LED headlight bulb is designed to closely match the dimensions and mounting position of the original halogen bulb it replaces. This compact design can make installation easier, improve dust-cap clearance, and help the light source sit closer to its intended position inside the headlight assembly.

What Does “1:1 Halogen Size” Mean?

Factory headlight housings are designed around the shape and mounting location of the original halogen bulb. That includes the bulb base, the available space behind the housing, the dust cover, nearby wiring, and other components.

A 1:1 halogen-size LED bulb is engineered to keep its overall body and mounting profile as close as practical to the original halogen bulb. Compared with larger LED designs, it may use a more compact heat-management system, smaller driver components, or a streamlined bulb body.

This does not mean every LED bulb will have identical dimensions to every halogen bulb. Always compare the listed product dimensions with your available installation space.

Why Oversized LED Headlight Bulbs Can Cause Problems

Some LED headlight bulbs use larger cooling fans, heat sinks, or external driver modules. While thermal management is important for LED performance, oversized components can create fitment challenges in compact headlight housings.

Common issues include:

• Dust-cap clearance problems: If the bulb is too long or wide, the rear dust cover may not close correctly. A poor seal can expose the housing to moisture and road debris.
• Limited installation space: Nearby brackets, wiring, and components can make it difficult to position a larger bulb securely.
• More complicated installation: An oversized design may require extra adjustments, cable routing, or vehicle-specific accessories.
• Incorrect light-source placement: Physical size alone does not determine beam performance, but LED chips that do not align properly with the original filament position can affect the beam pattern.

A compact bulb design can help address space-related concerns, especially in vehicles with shallow headlight housings.

Compact Fitment Can Help Preserve Proper Bulb Position

For LED headlight bulbs, the placement of the LED chips matters. In many headlight designs, the chips should closely align with the position of the original halogen filament to help create a more controlled light pattern.

A 1:1 halogen-size design can support this goal by allowing the bulb to mount naturally in the factory housing rather than sitting too far forward, too far back, or at an awkward angle.

However, the final beam pattern also depends on the vehicle’s headlight housing, bulb orientation, installation quality, and headlight aim. After installing LED bulbs, check the beam pattern on a level surface and adjust the headlights if necessary.

Easier Installation and Better Dust-Cap Clearance

A compact LED headlight bulb can make installation more straightforward by reducing the chance of interference behind the housing. When the dust cap closes correctly, it helps maintain the housing’s intended protection against moisture, dirt, and debris.

Before buying, review:

• The bulb’s overall length and width
• The size and location of any cooling fan or heat sink
• Whether there is an external driver module
• The shape and available depth behind your vehicle’s dust cap
• Any vehicle-specific fitment notes

A smaller bulb body can be particularly helpful for H11, H7, H4, 9005, and 9006 applications where available space varies significantly by vehicle.

How to Check LED Headlight Bulb Fitment Before Ordering

Before purchasing LED headlight bulbs, take a few minutes to confirm:

1. Your vehicle’s exact year, make, model, and trim.
2. The bulb size required for the specific lighting position.
3. The available space behind the headlight housing.
4. The LED bulb’s listed dimensions and cooling design.
5. Whether customer reviews or fitment notes mention dust-cap clearance for your vehicle.
6. Whether your vehicle may need a CANbus decoder or other compatibility accessory.

Choose a Compact LED Headlight Bulb With Confidence

A 1:1 halogen-size LED headlight bulb can be a practical choice when you want a more compact installation, better dust-cap clearance, and a design that works naturally within the factory headlight housing.

Fahren LED headlight bulbs are designed with vehicle fitment in mind, including compact options for popular bulb sizes such as H11, H7, H4, 9005, and 9006. Use the Fahren vehicle selector to identify compatible options, then verify the bulb size and available installation space before ordering.

Compatibility, beam performance, and on-road lighting requirements can vary by vehicle and location. Confirm fitment and check applicable local regulations before installation.
